DS-2CD2620F-I
You are here: Home \ Products \ DS-2CD2620F-I

DS-2CD2620F-I

logo-2
Up to 2 megapixel (1920 × 1080) resolution
Support ROI function
Standard video compression with high compression ratio
Progressive scan CMOS, capture motion video without incised margin
Support dual stream, and the sub-stream for mobile surveillance
High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
IR cut filter with auto switch
PoE (Power over Ethernet)
3D DNR
DWDR
Ingress Protection level: IP66
Auto-iris, electronic shutter for different surveillance environments
Other functions: reset, heartbeat, mirror, etc.
3-axis adjustment
Support intrusion detection and line crossing detection
Support VCA, which is compatible with NVR for the second time of video searching and analysing

Categories: , , ,

Description

DS-2CD2620F-I – Product Description

Model DS-2CD2620F-I
Model Code DS-2CD2620F-I
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution 2 MP
Digital (DSP) Yes
Specialist Type Megapixel
Sensitivity Lux 0.01
Auto Iris Yes
Motion Activated Yes
Focal Lengtd mm 2.8 ~ 12
Wide Dynamic Range Yes
Picture Elements HxV 1920 x 1080
Back Light Compensation Yes
Electronic Shutter Range 1/3 ~ 1/100,000s
Electrical Specifications Voltage: 12 V DC
Power Consumption: 5.5 W
Network Properties Image Frame Rate: 25 fps
Inclusion DVR/ Web Server: Yes
Interface: 1 RJ45 10M/100M Etdernet interface
Network Protocols: TCP/IP, UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Compression Type H.264, MJPEG
Physical Specifications Weight g: 1,200
Dimensions mm: 95 x 105 x 259
Environmental Specifications Protection: IP66
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: 95

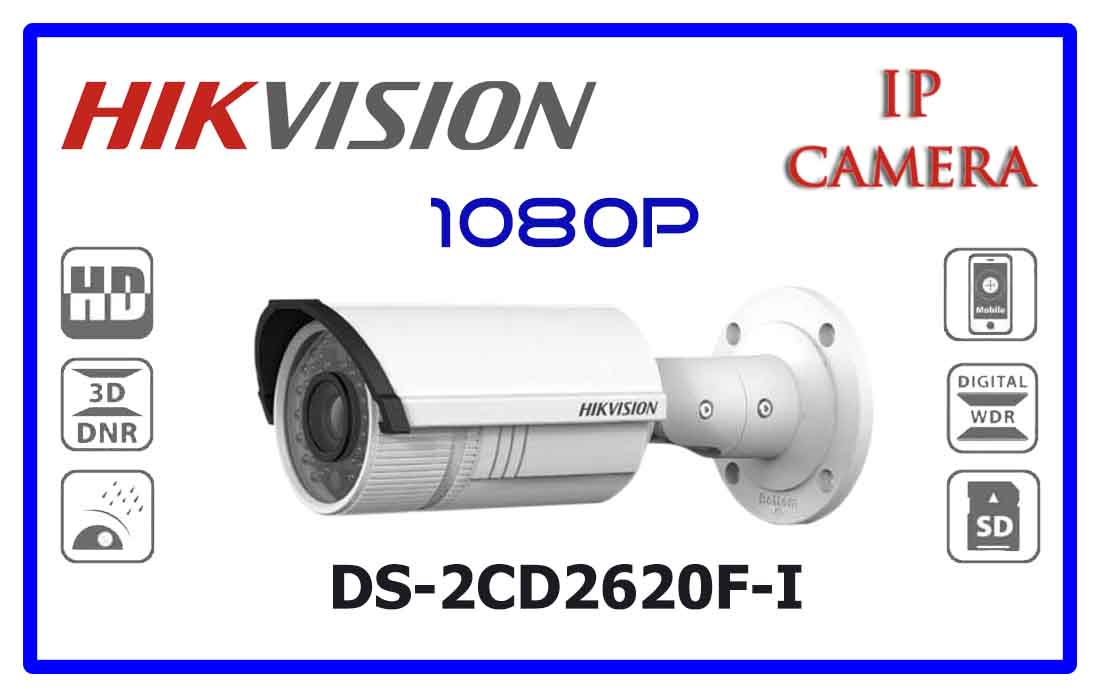

Model Info Hikvision DS-2CD2620F-I is a 2 megapixel vari-focal
IR bullet camera witd tde following features:

  • 3D DNR
  • 3-axis adjustment
  • Support intrusion detection and line crossing detection
  • Support VCA, which is compatible witd NVR for tde second time of
    video searching and analysing
  • IR cut filter witd auto switch
