Description

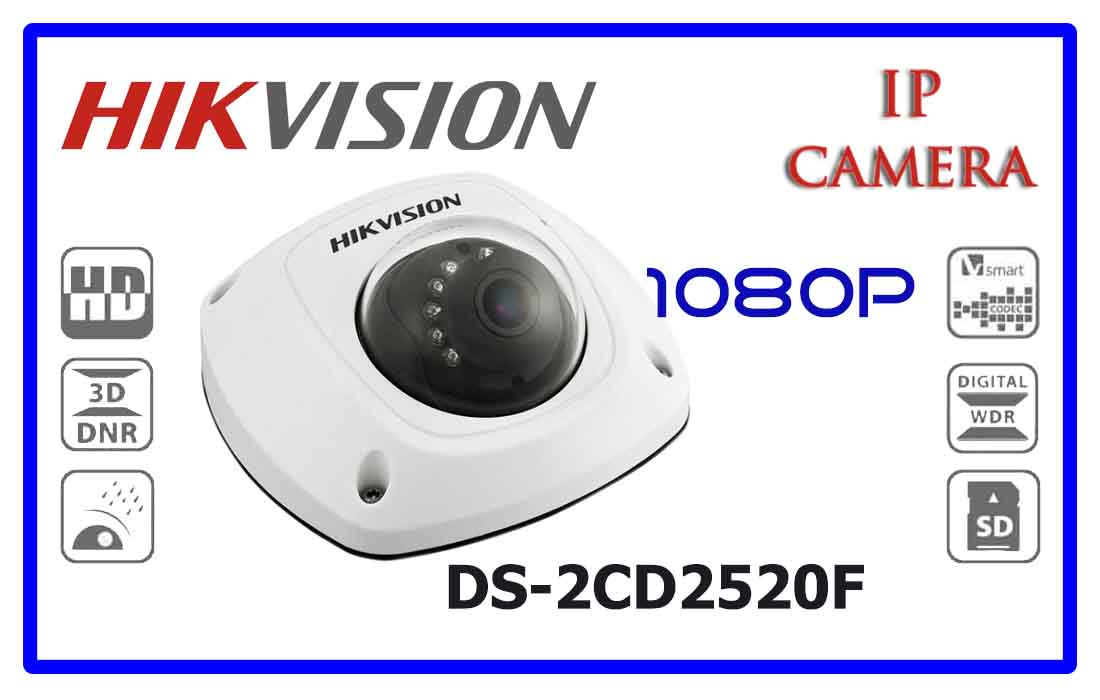

DS-2CD2520F – Product Description
| Model | DS-2CD2520F |
|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS |
| Min. Illumination: | Color: 0.028 lux @ f/2.0 B/W: 0.0028 lux @ f/2.0 |
| Shutter time: | 1/3 s to 1/100,000 s |
| Lens: | Fixed 2 mm @ f/2.0 Angle of view: 126° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: ± 15°, Tilt: 0 – 90°, Rotation: ± 15° |
| Day& Night: | Electronic |
| Wide Dynamic Range: | Digital WDR |
| Digital noise reduction: | 3D DNR |
| Video Compression: | H.264/MJPEG |
| Video bit rate: | 32Kbps~8Mbps |
| Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Support |
| Network Storage: | Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS) |
| Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 4W |
| Impact Protection: | IEC60068-2-75Eh, 50J; EN50102, IK10 |
| Weather Proof: | IP66 |
| Dimensions: | 99.9 × 97.5 × 46.5 mm (3.93” × 3.84” × 1.83”) |
| Weight: | 400 g (0.88 lbs) |
