Description

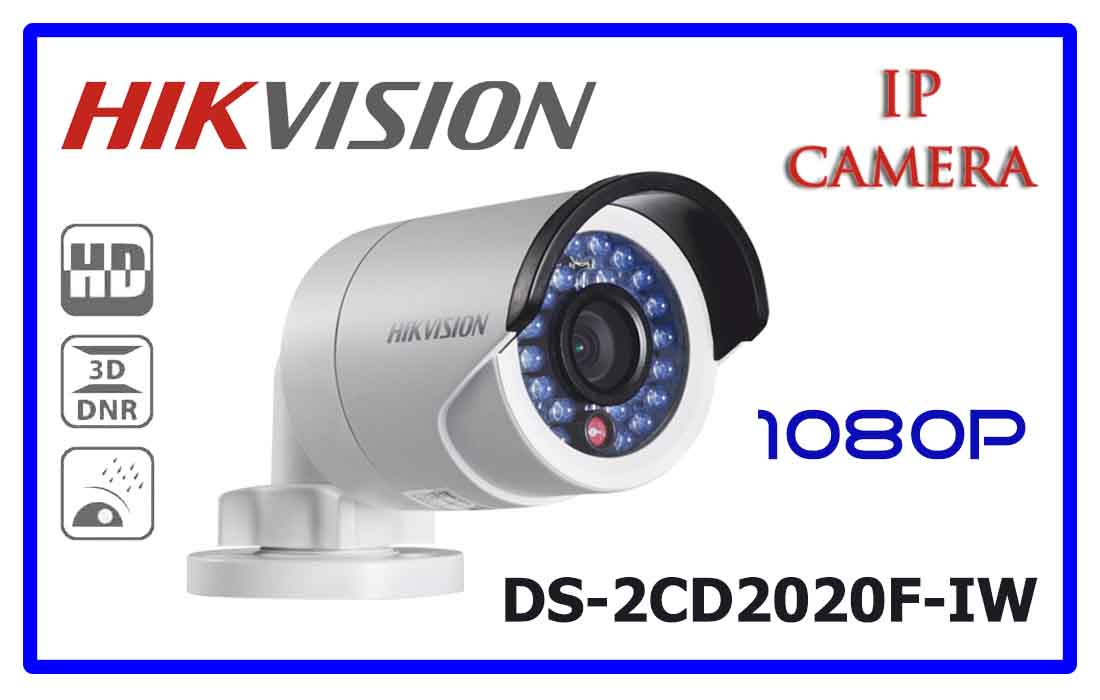

DS-2CD2020F-IW – Product Description
| Model | DS-2CD2020F-IW |
|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Lens: | 4mm@ F2.0, Angle of view: 85° (6mm optional) |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | Digital WDR |
| Digital noise reduction: | 3D DNR |
| Video Compression: | H.264/MJPEG |
| Video bit rate: | 32Kbps~8Mbps |
| Dual Stream: | Yes |
| Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Support |
| Network Storage: | NAS (Support NFS,SMB/CIFS) |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Security: | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | 20/40MHz Support |
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Wireless Range: | 50m(depend on environment) |
| Protocols: | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | MAX. 5.8W |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Dimensions: | 70×157×62mm (2.8” × 6.1” × 2.4”) |
| Weight: | 500g (1.1 lbs) |
