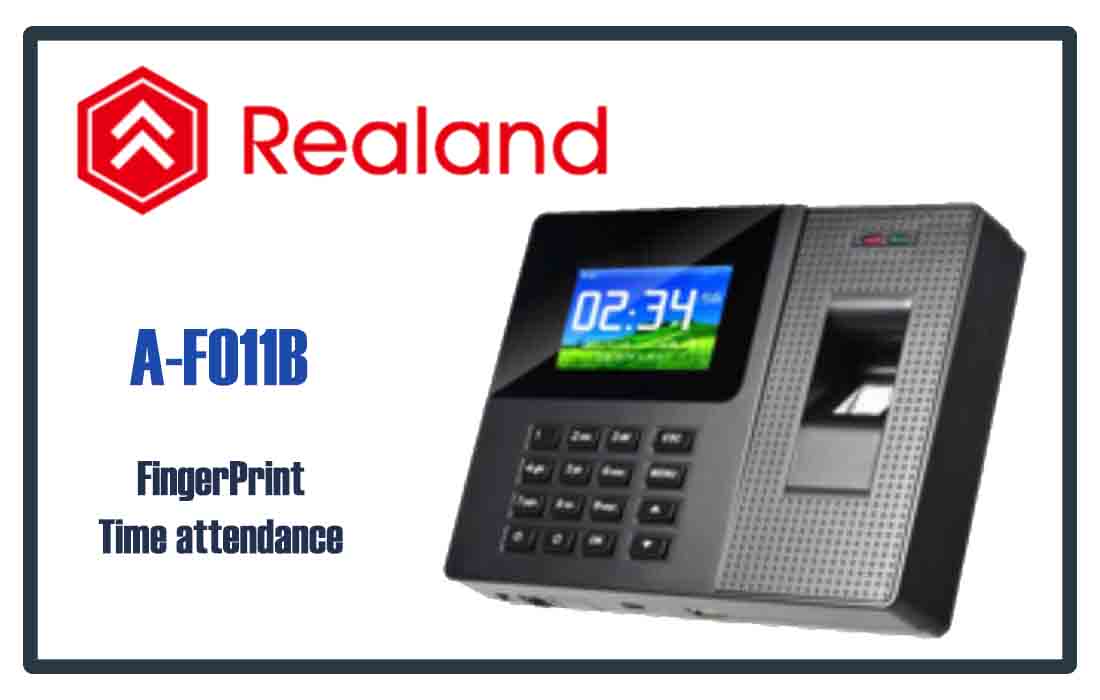

A-F011B

Realand_max

Support simple access control and external bell
The device is built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and secure.
Optional for battery backup function
2.8 inch TFT color screen.
Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
Supports 11 & 18 digits for user ID registration, user also could enroll mobile number for ID numbers.
Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,000 enrollment and 100,000 records
Support multi development language(VB, C++, Delphi ect) SDK, and ODM/OEM software development
Support English, Germany, Spanish ect different languages

Product Description

Model A-F011B
LCD Screen 2.8 inch TFT (320*240)  Color Screen
Fingerprint Sensor Resolution 500DPI (Optical sensor)
Hardware Platform REALANDR ZDC2911
Algorithm Version REALANDR RSFv5.1
CPU ARM926EJ CPU, Running Frequency:  200MHZ
Communication TCP/IP,  RS485,  USB Memory Disk
User Capacity 1,000
Records Capacity 100,000
Software OS XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
Identification Time < 0.8 S
Authentication Method Fingerprint/ RFID Card (125Khz, EM4100)
Language Chinese / English / Spanish/Portuguese/ German (could customize others)
Bell Built-in timing bell (scheduled-bell)
Power DC 5V/0.5A
FRR <1%
FAR <0.00001%
Support Simple access control & external bell
Backup Power Battery backup(3 hours)
Operating Mode Off-line/On-line
Authentication Mode 1:1, 1:N
Operating environment Operating Temp: 0ºC-50ºC, Humidity:80%
Certificates CE, Type Inspection Report of Chinese Police Product
Dimension(L*W*H)mm Terminal – 180*134*36mm
Package – 325*105*258 mm
Weight Terminal – 0.365Kg; Package – 0.866Kg .
